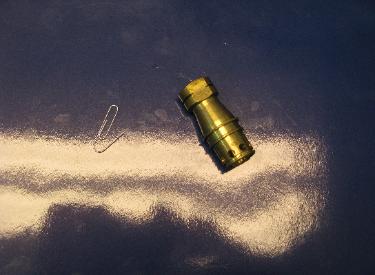

I.D Threaded brass adaptor with live
tooling drilled holes.
Material: Brass
Cycle Time: 2.5 min
tooling drilled holes.
Material: Brass
Cycle Time: 2.5 min

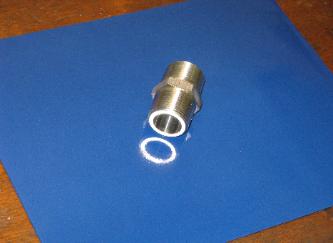

Double threaded adaptor with
precision reamed hole.
Material: 316 stainless steel
Cycle Time: 3 min
precision reamed hole.
Material: 316 stainless steel
Cycle Time: 3 min

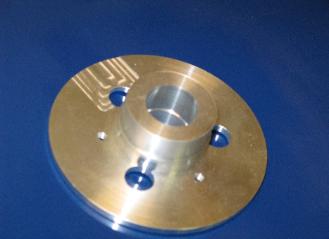

Slotted boss with live tooling pockets
as well as 6 holes
Material: 6061 AL
Cycle Time: 5 min
as well as 6 holes
Material: 6061 AL
Cycle Time: 5 min

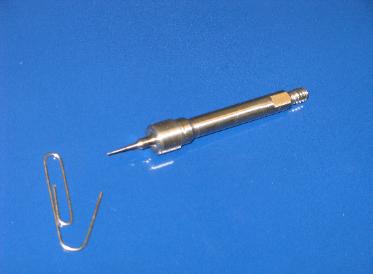

3/8 50 thread, .008 dia. at the tip with
a runnout of less that .002 from thread
o.d to the .008 tip.
Material: 316 stainless steel
Cycle Time: 3 min
a runnout of less that .002 from thread
o.d to the .008 tip.
Material: 316 stainless steel
Cycle Time: 3 min
